Webpage 2D x-y Scatterplot Example

Personal Note: This is fun! I learned something new about this very familiar dataset while adding this feature to Winsteps. I'm sure you will do the same with your data.

Try this interactive plot for real at

 Webpage 2D x-y Scatterplot Example

1.Run the Winsteps analysis.

2.Plots menu

3.Click on Webpage 2D x-y Scatterplot
Submenu of Output Files displays

4.Click on the Output File containing the 2 columns of numbers you want to scatterplot

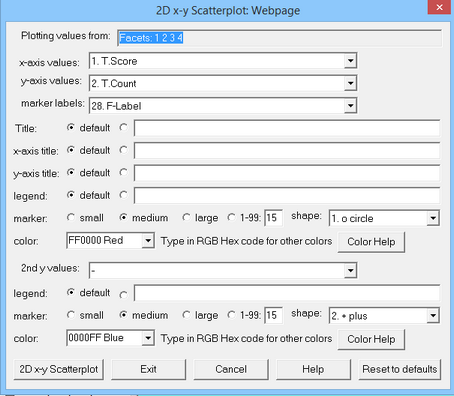

5.2D x-y Scatterplot Control dialog box displays

6.Choose the variables for the x- and y-axis values

7.Make other changes (if any)

8.Click on '2D x-y Scatterplot" button

9.Your webpage browser launches

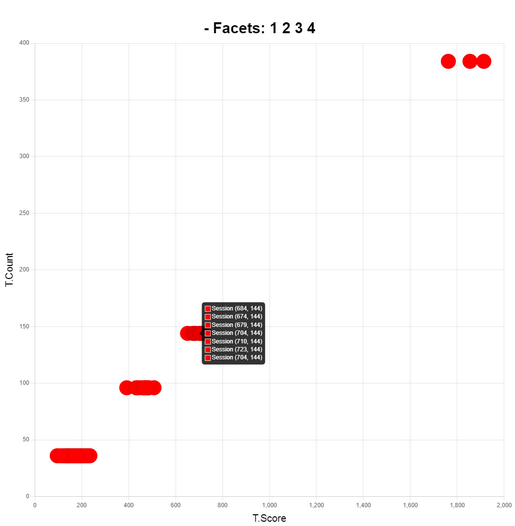

10.2D x-y Scatterplot displays.

11.Mouse over a point to see the point-label

12.You can "Save As" (ctrl+s) "Web Page, HTML only" with full functionality.
